EFFECT OF HEAT TREATMENT ON MECHANICAL PROPERTIES OF SUCKER ROD STEELS

УДК 669

Abstract

This study investigates the influence of heat treatment processes on the mechanical properties and fatigue resistance of sucker rod steels used in oil well pumping systems. The objective of the research is to determine how different heat treatment regimes affect the microstructure and operational performance of the material under cyclic loading conditions. The methodology included the analysis of heat treatment stages such as austenitizing, quenching, and tempering, followed by comparative evaluation of microstructural transformations and mechanical behavior based on literature data and metallographic observations. The results show that optimized heat treatment promotes the formation of a tempered martensitic structure with a uniform carbide distribution, which significantly improves strength, ductility, and fatigue resistance. Properly controlled quenching and tempering processes also reduce residual stresses and enhance structural stability. The study confirms that the mechanical reliability and service life of sucker rods strongly depend on the selected thermal processing parameters. The obtained findings demonstrate the practical importance of heat treatment optimization for increasing the durability and operational efficiency of sucker rods in oilfield applications.

Аннотация

В данном исследовании изучается влияние процессов термической обработки на механические свойства сталей, используемых в насосных штангах для нефтяных скважин. Насосные штанги работают в условиях циклических нагрузок и подвержены усталостному разрушению, поэтому характеристики материала имеют решающее значение для надежности системы. Исследование сосредоточено на оптимизации параметров термической обработки, таких как аустенитизация, закалка и отпуск, для достижения баланса между прочностью, пластичностью и ударной вязкостью. Микроструктурный анализ и механические испытания показывают, что отпущенные мартенситные структуры обеспечивают превосходную усталостную стойкость и долговечность по сравнению с необработанными материалами.

Keywords: Heat treatment, sucker rod steel, microstructure, fatigue resistance, oilfield materials.

Ключевые слова: Термическая обработка, сталь для насосных штанг, микроструктура, усталостная прочность, материалы для нефтедобычи.

Introduction

Sucker rods used in oil wells are one of the principal components of artificial lift systems, operating under highly variable mechanical loads; therefore, the mechanical properties of the material play a decisive role in their reliability [1-3].

Figure 1. Structure and operating principle of the rod pumping system

One of the primary causes of failure of these components is the insufficient fatigue resistance of the material; therefore, the optimization of heat treatment processes is of significant scientific and practical importance.

Methodology

The study was based on the analysis of heat treatment processes commonly applied to sucker rod steels used in oilfield equipment. The research included the examination of austenitizing, quenching, and tempering stages and their influence on phase transformations in the Fe–C system. Microstructural analysis was performed using metallographic observations obtained from published experimental studies. The investigation focused on the formation of martensitic and bainitic structures, carbide phase distribution, and structural changes under different cooling conditions. Mechanical behavior was evaluated through comparative analysis of hardness, strength, ductility, and fatigue resistance characteristics reported in recent scientific publications. The obtained results were systematized to determine the relationship between heat treatment parameters and operational reliability of sucker rod steels [4,5].

Main part

Heat treatment is one of the key technological processes that enables control over the mechanical properties of sucker rod steels by modifying their microstructure.

Figure 2. Heat treatment diagram for the Fe–C system: phase transformations with critical temperature points Ac₁, Ac₃, and Mₛ

These processes include:

• Austenitizing
• Quenching
• Tempering

With the proper selection of these stages, the steel microstructure can be transformed into martensitic or bainitic phases. The microstructure formed as a result of heat treatment directly determines the mechanical behavior of the material [6].

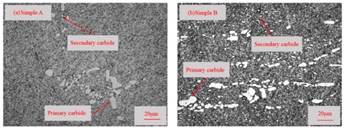

Figure 3. Microstructural analysis of carbide phases in steel samples: distribution of primary and secondary carbides

Studies have shown that through optimal heat treatment, it is possible to achieve a balance between high strength and sufficient plasticity in the material.

Figure 4. Microstructural confirmation of phase transformations in the Fe–C system: structures formed under different cooling regimes

Optimization of heat treatment processes enables the extension of the service life of sucker rods and the reduction of failure rates.  Heat treatment processes play a decisive role in the development of the mechanical properties of sucker rod steels, and through the proper selection of technological parameters, both the strength and fatigue resistance of the material can be significantly enhanced [7].

Figure 4. Microstructural confirmation of phase transformations in the Fe–C system: structures formed under different cooling regimes

Heat treatment processes play a decisive role in the development of the mechanical properties of sucker rod steels, and through the proper selection of technological parameters, both the strength and fatigue resistance of the material can be significantly enhanced [5-7]. The objective of this study is to analyze the influence of heat treatment processes on the microstructure and mechanical properties of sucker rod steels and to determine the optimal thermal processing conditions for improving fatigue resistance and operational durability [8].

The novelty of the study lies in the systematization of recent research data regarding the relationship between heat treatment regimes, microstructural evolution, and fatigue performance of sucker rod steels operating under cyclic oilfield loading conditions [9,10].

Conclusion

The conducted study demonstrates that the mechanical properties and operational reliability of sucker rod steels are strongly influenced by heat treatment regimes. The proper selection of austenitizing, quenching, and tempering processes results in the formation of a tempered martensitic structure, which provides an optimal balance of strength, ductility, and fatigue resistance. This microstructure is particularly suitable for components operating under cyclic loading conditions in oil wells. Moreover, the homogeneity of the microstructure and the controlled distribution of carbide phases play a crucial role in enhancing material performance. A refined and uniform structure reduces stress concentration sites, thereby limiting crack initiation and slowing crack propagation. Additionally, optimized heat treatment reduces residual stresses and improves structural stability. As a result, these improvements significantly extend the service life of sucker rods, reduce failure rates, and enhance the overall reliability and efficiency of artificial lift systems in oil production operations.

Reference:

1. Duan, D. L., Geng, Z., Jiang, S. L., & Li, S. (2014). Failure mechanism of sucker rod coupling. Engineering Failure Analysis, 36, 166–172.
2. Byron, F., Mohamed, N., & Imbert, C. (2022). Failure analysis of a sucker rod from an oil well located offshore Trinidad and Tobago. Caribbean Journal of Multidisciplinary Studies, 1(1), 61–74.
3. Zhang, F., Liu, Y., Wang, X., & Chen, Z. (2023). Low-frequency corrosion fatigue test study of sucker rod materials. Processes, 12(1), Article 60.
4. Li, H., Zhao, Y., & Wang, T. (2021). Effect of quenching and tempering parameters on the fatigue behavior of sucker rod steel. Materials Today Communications, 28, 102604.
5. Kumar, P., Singh, R., & Verma, A. (2022). Microstructural evolution and mechanical properties of heat-treated medium-carbon steels for oilfield applications. Journal of Materials Engineering and Performance, 31(4), 2987–2998.
6. Chen, L., Wu, J., & Gao, X. (2023). Influence of tempering temperature on fatigue resistance of alloy steels used in petroleum equipment. Metals, 13(5), 812.
7. Ahmed, S., Hassan, M., & El-Sayed, A. (2024). Recent advances in heat treatment optimization of oilfield steels. Journal of Petroleum Science and Engineering, 236, 109684.
8. Liu, Y., Zhang, Q., & Chen, H. (2022). Influence of heat treatment parameters on microstructure and fatigue performance of sucker rod steels. Materials Science and Engineering A, 835, 142687.
9. Wang, J., Li, X., & Sun, P. (2021). Corrosion fatigue behavior of quenched and tempered alloy steels in simulated oilfield environments. Engineering Failure Analysis, 127, 105521.
10. Patel, R., Sharma, V., & Gupta, N. (2023). Mechanical performance and fracture analysis of heat-treated threaded couplings for petroleum applications. Materials Today: Proceedings, 72, 2541–2547.
