MITIGATING ELECTROMAGNETIC INTERFERENCE IN INDUSTRIAL RS-485 NETWORKS: A COMPREHENSIVE ANALYSIS OF VFD-PLC INTEGRATION IN HIGH-DENSITY CABLE TRAYS

ABSTRACT

Reliable data exchange in industrial environments is frequently compromised by electromagnetic interference generated by high-power switching electronics. This paper presents a systematic analysis of communication failures in a multi-drop Modbus RTU network involving a Siemens S7-1500 PLC and five Danfoss VLT® AQUA Drive units. We investigate the impact of improper grounding and impedance mismatching over a 40-meter KIPEVng-LS cable segment sharing high-density cable trays with power lines. Through real-time oscilloscopic diagnostics, we demonstrate that a lack of functional grounding and termination leads to severe common-mode noise  and signal reflections. The study validates that implementing an EMC-compliant grounding architecture restores signal integrity to a stable 1.74V waveform.

АННОТАЦИЯ

Надежный обмен данными в промышленных средах часто нарушается из-за электромагнитных помех, создаваемых мощной силовой электроникой. В данной работе представлен систематический анализ сбоев связи в сети Modbus RTU, объединяющей ПЛК Siemens S7-1500 и пять преобразователей частоты Danfoss VLT® AQUA Drive. Исследуется влияние неправильного заземления и рассогласования импедансов на 40-метровом сегменте кабеля КИПЭВнг-LS, проложенном в общих лотках с силовыми линиями. С помощью осциллографической диагностики в реальном времени показано, что отсутствие функционального заземления и терминаторов приводит к возникновению сильных синфазных помех и отражений сигнала. Исследование подтверждает, что внедрение архитектуры заземления, соответствующей стандартам ЭМС, восстанавливает целостность сигнала до стабильного уровня 1,74 В.

Keywords: Modbus RTU, Signal Integrity, Functional Safety, Common-mode noise, Termination resistors, Differential signaling, Electromagnetic Compatibility, Cable management.

Ключевые слова: Modbus RTU, целостность сигнала, функциональная безопасность, синфазный шум, согласующие резисторы, дифференциальная сигнализация, электромагнитная совместимость, кабельный менеджмент.

Introduction

The rapid evolution of Industry 4.0 has not rendered traditional serial communication obsolete. According to the 2023 HMS Industrial Networks report [4], while Industrial Ethernet continues to grow, classic fieldbuses, with RS-485 at their core, still maintain a significant market share of approximately 25% of all new installed nodes. In sectors such as mining and water management, RS-485 remains the primary choice due to its superior 1200-meter range and the inherent common-mode noise rejection of its differential signaling.

However, the physical layer of these networks is frequently the victim of aggressive electromagnetic environments. Modern engineering trends often prioritize space optimization, leading to the installation of high-power VFD output cables and sensitive signal lines within the same cable trays. This proximity, often violating separation standards, exposes RS-485 transceivers to high  transients. This paper demonstrates that software-level error handling is merely a symptomatic treatment. Real system resilience can only be achieved by addressing the fundamental electromagnetic non-compliance at the physical layer.

Electromagnetic Compatibility in drive systems is strictly governed by the IEC 61800-3:2017/2021 standard [2, p. 24], which defines requirements for power drive systems. Fundamental research by H. Ott [6, p. 154] established the groundwork for high-frequency grounding, emphasizing that the effectiveness of a shield is limited by the impedance of the ground path.

Recent studies (2020–2023) on Wide Bandgap and advanced IGBT inverters highlight that as switching speeds increase to improve energy efficiency, the spectral density of generated noise shifts toward higher frequencies. While many authors propose active filtering or a transition to fiber optics as a solution, these measures are often cost-prohibitive for existing brownfield installations. Our research fills a gap in the practical literature by demonstrating how precise Functional Ground topology, as specified in the IEEE Std 1100-2005 [3, p. 82], can stabilize communication on standard copper cabling without the need for active filtration or architectural overhaul.

Materials and methods

The core of modern VFDs, such as the Danfoss FC 202, utilizes Insulated Gate Bipolar Transistors (IGBTs) operating in a switching mode [10, p. 42]. To maximize efficiency and prevent thermal destruction, these transistors must transition between "off" and "on" states almost instantaneously. In a 400V system, the internal DC bus typically maintains a potential of approximately 540V–560V. During pulse-width modulation at 5 kHz, the IGBTs "throw" this voltage into the motor cable with nanosecond-scale rise times. This results in a voltage slew rate () exceeding . While this minimizes switching losses, it creates an extreme electromagnetic environment.

When the VFD power cable and the RS-485 cable share a tray, they form a distributed capacitor. The noise current  injected into the signal line is directly proportional to the  of the power cable and the mutual capacitance  [6, p. 160]:

Using a KIPEVng-LS cable () over a 40-meter run, the coupling capacitance is . Combined with the 540V transitions, this induces impulsive currents that shift the signal potential, manifesting as the 2.33V noise floor observed in the baseline measurements.

According to transmission line theory [3, p. 145], any impedance mismatch between the load () and the cable characteristic impedance () generates a reflected wave. The reflection coefficient Γ is:

In our initial failed state, where termination resistors were absent,  → ∞ (the high impedance of the PLC port), resulting in . This caused 100% of the signal energy to reflect, creating the "ringing" effect. This reflected energy constructively interfered with the incident signal and the induced EMI, inflating the peak-to-peak voltage to the recorded 2.33V and 2.07V levels.

The control architecture is centered around a Siemens S7-1500 PLC equipped with a CM PtP RS422/485 HF module [7, p. 18]. This module serves as the Modbus RTU Master, managing five Danfoss VLT® AQUA Drive FC 202 units [10, p. 112]. For the physical layer, a specialized KIPEVng-LS 2x2x0.6 cable was utilized, featuring a 120 Ω characteristic impedance and a dual-layer shield (aluminum-polymer tape and tinned copper braid). The 40-meter perforated metallic cable tray represented a "worst-case" EMI scenario:

• Shared Trays: RS-485 cable in direct contact with unshielded 5 kHz PWM VFD output cables.
• Grounding Discontinuity: Initial absence of a dedicated functional ground path and partially terminated shields.

Signal integrity was analyzed at the distal node using a high-bandwidth digital oscilloscope in two phases:

• Phase I (Unoptimized): No termination resistors, FG circuit open. Time base: .
• Phase II (Optimized): 120 Ω resistors installed, FG path established (PLC Pin 8 to VFD Terminal 61). Time base: . The optimized grounding topology is illustrated in Figure 1.

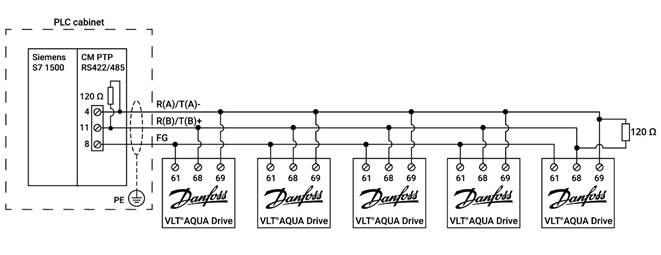

Figure 1. Schematic of the optimized grounding topology

Results and discussion

In modern industrial automation, the reliability of the communication sub-system is a critical component of the overall Safety Integrity Level of the plant. According to IEC 61508 [1, p. 34], functional safety depends on the correct operation of the electrical control system. The observed EMI-induced noise floor of 2.33V constitutes a systematic failure that compromises the "Black Channel" principle. Phase I waveforms (Figure 2) revealed:

• Line A (CH1): 2.33 V
• Line B (CH2): 2.07 V

The 0.26 V asymmetry confirms that EMI coupled unevenly into the twisted pair, leading to immediate bit-flipping and CRC errors. This reflected energy constructively interfered with the incident signal and the induced EMI, inflating the peak-to-peak voltage to the recorded levels.

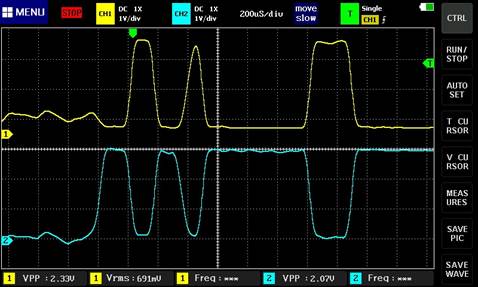

Figure 2. Oscillogram showing 2.33V peak noise at 200us/div

The interference generated by the VFDs creates a stochastic error environment. In the baseline state, the recorded 11.1% asymmetry suggests that common-mode noise is frequently converted to differential noise. If this noise magnitude exceeds the RS-485 receiver threshold, it results in bit-flipping and latent failures where the PLC retains the last known state of a drive. Beyond signal corruption, persistent EMI creates a high interrupt load on the Siemens S7-1500 communication processor [7, p. 55], leading to "buffer bloat" and increased jitter.

Following optimizations (Figure 3), results showed:

• Line A (CH1): 1.74 V
• Line B (CH2): 1.76 V

The absolute  was reduced by 25.3%, and asymmetry dropped to 1.1%, a 10-fold improvement in line balance.

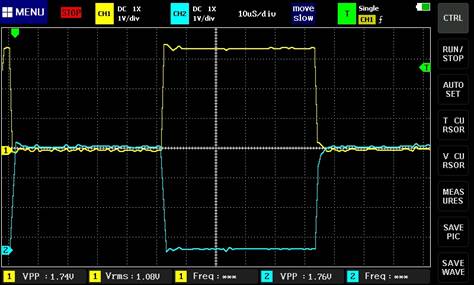

Figure 3. Oscillogram showing 1.74V clean signal at 10us/div

Table 1.

Statistical Summary and Noise Margin Evaluation

At MHz-range harmonics, standard "pigtails" exhibit high inductive reactance [11, p. 210]. Only 360° shield bonding via EMC clamps provides the necessary low-impedance path. Simultaneously, the FG path ensures transceivers share the same reference, clamping the signal within the safe operating window. Recent research by Zhang (2023) [12, p. 4125] suggests that as VFDs become faster, higher carrier frequencies create capacitive coupling that bypasses poor-quality shields. Our results confirm that signal integrity is a physical constant that must be engineered.

Conclusion

This research provides a comprehensive analysis of electromagnetic compatibility challenges in integrated VFD-PLC systems. By correlating theoretical models of capacitive coupling and signal reflection with real-world oscilloscopic data, we have demonstrated that improper grounding and termination are the primary drivers of communication failure in high-density cable environments.

The transition from a distorted, EMI-saturated baseline to a clean, stable waveform was achieved through the systematic application of EMC principles. The results confirm that:

• Differential signaling alone is insufficient for EMI rejection in shared cable trays.
• Functional grounding via dedicated reference paths is essential for clamping common-mode voltage.
• Impedance matching is critical for eliminating signal reflections that can lead to bit-flipping and protocol-level timeouts.

Engineering Recommendations:

• Impedance Matching: Terminate with 120 Ω resistors to maintain  [3, p. 147].
• Equipotential Bonding: Link Pin 8 to Terminal 61 to prevent common-mode drift.
• Shield Continuity: Use metallic clamps for 360° bonding.

References:

1. IEC 61508:2010. Functional Safety of Electrical/Electronic/Programmable Electronic Safety-related Systems. – Geneva : IEC, 2010. – 156 p.
2. IEC 61800-3:2017. Adjustable speed electrical power drive systems - Part 3: EMC requirements. – Geneva : IEC, 2017. – 124 p.
3. IEEE Std 1100-2005. IEEE Recommended Practice for Powering and Grounding Electronic Equipment. – New York : IEEE, 2005. – 589 p.
4. Industrial Network Market Shares 2023 // HMS Industrial Networks : [сайт]. – URL: https://www.hms-networks.com (дата обращения: 10.03.2026).
5. Kumar R. Shielding Effectiveness of Twisted Pair Cables in High-Density Industrial Trays // Journal of Industrial Automation. – 2024. – Vol. 12, No. 1. – P. 45–58.
6. Ott H. W. Electromagnetic Compatibility Engineering. – John Wiley & Sons, 2009).
7. SIMATIC S7-1500 Communication Module Manual. – Nuremberg : Siemens AG, 2021. – 92 p.
8. Smith J. Comparative Study of RS-485 and Industrial Ethernet in Mining Environments // Automation Today. – 2022. – No. 3. – P. 12–19.
9. Technical Guide: Grounding and Bonding for Control Systems. – Belden Inc., 2023. – 44 p.
10. VLT® AQUA Drive FC 202 Design Guide. – Nordborg: Danfoss A/S, 2020. – 186 p.
11. Williams T. EMC for Product Designers. – 5th ed. – Oxford : Newnes, 2016. – 548 p.
12. Zhang L. Analysis of Electromagnetic Interference in VFD Systems with SiC MOSFETs // IEEE Transactions on Industrial Electronics. – 2023. – Vol. 70, No. 4. – P. 4122–4131.
