DESIGN CHALLENGES IN TEMPERATURE COMPENSATION FOR CHEMICAL REACTOR HEAT EXCHANGERS

ABSTRACT

Optimizing heat exchanger transfer functions for temperature compensation is essential to improve heat transfer efficiency and ensure stable temperature regulation in industrial systems. This paper examines approaches such as Artificial Neural Networks (ANNs), phase-change materials (PCMs), and topology optimization. ANN-based controllers reduce oscillations and enhance steady-state performance beyond PI and PID methods. Embedding PCMs in graphite matrices greatly increases thermal conductivity, while topology optimization improves flow and reduces pressure drop. Key challenges include thermal expansion, fatigue, vibration, fouling, integration, and maintenance. Advanced simulation, computational fluid dynamics (CFD), and intelligent sensors can further strengthen design and enhance the long-term reliability of compensation systems.

АННОТАЦИЯ

Оптимизация передаточных функций теплообменников для температурной компенсации имеет решающее значение для повышения эффективности теплообмена и обеспечения стабильного регулирования температуры в промышленных системах. В работе рассматриваются подходы, такие как использование искусственных нейронных сетей (ANN), фазоизменяющихся материалов (PCM) и топологической оптимизации. Системы управления на основе ANN уменьшают колебания и улучшают установившийся режим по сравнению с методами PI и PID. Внедрение PCM в графитовую матрицу значительно повышает теплопроводность, а топологическая оптимизация улучшает характеристики потока и снижает гидравлическое сопротивление. Основные проблемы включают тепловое расширение, усталость, вибрации, загрязнение, коррозию, интеграцию и обслуживание. Применение передовых методов моделирования, вычислительной гидродинамики (CFD) и интеллектуальных датчиков может значительно улучшить процесс проектирования и повысить долговременную надежность систем температурной компенсации.

Keywords: heat exchangers; temperature compensation; chemical reactors; artificial neural networks (ANNs); phase-change materials (PCMs); topology optimization; heat transfer performance; thermal management; design challenges.

Ключевые слова: теплообменники; температурная компенсация; химические реакторы; искусственные нейронные сети (ANN); фазоизменяющиеся материалы (PCM); топологическая оптимизация; эффективность теплообмена; тепловое управление; проблемы проектирования.

Introduction

Optimizing Heat Exchanger Transfer Functions for Temperature Compensation. Improving the transfer functions of heat exchangers for temperature compensation requires the consideration of multiple strategies and design factors. Artificial Neural Networks (ANNs) have been increasingly applied to simulate and regulate the dynamic performance of heat exchangers. One notable approach utilizes two ANN models—one dedicated to replicating the exchanger’s behavior and the other functioning as a controller—combined with integral control. This setup has demonstrated promising outcomes in regulating air temperature, achieving reduced oscillations and superior steady-state stability compared to conventional PI and PID controllers under certain operating conditions.

For phase-change material (PCM)-based heat exchangers, optimizing thermal capacity and heat transfer coefficients is a key requirement. Research indicates that embedding PCM into a graphite matrix considerably enhances thermal conductivity, achieving values between 700–800 W/m²-K, which is nearly an order of magnitude greater than alternative setups. Moreover, compact PCM heat exchangers have shown the highest average thermal power output, exceeding 1 kW. In addition, topology optimization techniques have been employed to refine the thermal and fluid dynamic characteristics of exchangers designed for lithium-ion batteries. Such optimized designs have yielded improvements in heat transfer coefficients of up to 49.92%, alongside a 27.81% reduction in pressure drop. Critical design parameters in this optimization include channel height, thermal performance weighting, and fluid mass flow rate [1-2].

In summary, temperature compensation through transfer function optimization can be achieved by employing diverse methods such as ANN-driven controllers, PCM configuration refinement, and topology optimization. These approaches collectively lead to meaningful gains in heat transfer efficiency and precise thermal regulation.

The advances made in this field carry major implications across a wide range of industries, including HVAC systems, energy storage solutions, and automotive engineering. Enhanced efficiency and temperature control capabilities pave the way for more sustainable and cost-efficient thermal management practices. Future investigations may look into hybrid frameworks that merge these optimization techniques, capitalizing on the strengths of each to potentially revolutionize heat exchanger design and performance.

Nevertheless, existing research has not directly focused on the unique requirements of chemical reactor heat exchangers with respect to temperature compensation. Examining this issue within the broader context of recent optimization developments highlights the importance of designing efficient compensation systems specifically tailored for chemical reactors. Such systems are critical for maintaining optimal reaction environments and ensuring operational safety.

Chemical processes are highly sensitive to thermal fluctuations, which may impact reaction kinetics, product yield, and selectivity. Properly designed temperature compensation mitigates thermal gradients, eliminates localized “hot spots,” and provides control over both exothermic and endothermic reactions. This becomes especially important in large-scale reactors, where relatively small temperature variations can cause significant efficiency losses or create hazardous conditions. By applying effective strategies—such as adjustable flow rates, zoned cooling configurations, and advanced control systems—reactor performance, product quality, and overall process efficiency can be substantially improved.

A. Contribution of the Work

The primary contribution of this study lies in addressing and outlining the contemporary design challenges associated with heat exchangers (HEs) used in chemical reactors. The paper examines several strategies for improving heat exchanger efficiency, including the application of machine learning techniques such as Artificial Neural Networks (ANNs), the integration of phase-change materials (PCMs), and the use of topology optimization methods. It highlights the role of ANN-based controllers, PCM-enhanced heat exchangers, and topology-driven designs in strengthening both thermal and fluid flow performance. Furthermore, the study identifies the critical obstacles in developing temperature compensators and underscores the significance of advanced simulation tools, computational fluid dynamics (CFD), and intelligent sensor systems. In addition, it reviews the contributions of PID controllers, emerging control methods, Min–Max optimization approaches, and the influence of surface characteristics on the overall design of temperature compensation mechanisms [3-4].

Feed-Forward (FF) Temperature Compensation. In stirred-tank chemical reactor heat exchangers, feed-forward (FF) temperature compensation serves as a crucial control method to enhance both reactor efficiency and product quality. A number of studies have provided valuable contributions in this area. For instance, Congalidis et al. (1989) introduced a control framework for a copolymerization reactor that integrates FF, ratio, and feedback control to manage multiple variables, including reactor temperature. Their approach emphasized the use of FF control to counteract disturbances caused by recycle streams, which can otherwise alter polymer properties. Using a mathematical model, they demonstrated that a combined feed-forward/feedback strategy effectively compensates for unmeasured disturbances within the reactor.

Further advancement in this field was made by Carloff et al. (1994), who proposed a novel method for measuring heat transfer in stirred-tank reactors with variable heat exchange characteristics. Their technique involved the use of sinusoidal temperature oscillations, generated by an electric heater, to separate the effects of chemical heat production from fluctuating heat transfer during reactions. Known as the temperature oscillation calorimeter, this method proved successful when applied to the free radical polymerization of methyl methacrylate in ethyl acetate, a system where heat transfer declines significantly.

Overall, implementing FF-based temperature compensation in stirred-tank reactor heat exchangers has been shown to greatly enhance process performance and product consistency. As highlighted by Congalidis et al. (1989), combining FF with traditional feedback (FB) control creates a robust approach for handling disturbances while preserving optimal reactor conditions. Moreover, innovative diagnostic techniques like temperature oscillation calorimetry (Carloff et al., 1994) provide deeper insights into heat transfer dynamics, further refining the design and control of such systems.

The optimization of transfer functions in heat exchangers for temperature compensation requires diverse methods and design considerations. Artificial Neural Networks (ANNs) have emerged as an effective tool for modeling and managing the dynamic behavior of these systems. One approach integrates two ANN models—one for replicating exchanger behavior and another for control—together with integral control. This methodology has shown strong results in regulating air temperature, where Díaz et al. (2001) demonstrated that it surpassed conventional PI and PID controllers in certain operating ranges by reducing oscillations and improving steady-state accuracy.

For exchangers that rely on phase-change materials (PCMs), careful adjustment of thermal capacity and heat transfer coefficients is essential. Studies reveal that embedding PCM within a graphite matrix greatly improves heat conduction, reaching values of 700–800 W/m²-K, which is nearly ten times higher than other configurations. Compact PCM heat exchangers have also achieved superior average thermal output, exceeding 1 kW (Medrano et al., 2009).

Topology optimization has also been applied to refine thermal and flow performance, particularly in lithium-ion battery cooling systems. Optimized structures have achieved up to a 49.92% increase in heat transfer coefficients while reducing pressure losses by 27.81%. Critical factors influencing these improvements include channel geometry, thermal weighting parameters, and mass flow rate (Wei et al., 2024). Taken together, ANN control systems, PCM enhancements, and topology optimization provide a range of strategies to elevate both heat transfer efficiency and temperature regulation.

PID controllers remain widely used due to their robustness and adaptability in heat exchanger applications. Numerous studies have focused on improving PID performance across different designs. In shell-and-tube exchangers, for instance, fuzzy logic self-tuning PID controllers have been developed to manage outlet temperatures with fast response and adaptability to varying conditions (Jin et al., 2021). Likewise, ANN-based control schemes have also shown better dynamic regulation compared to traditional PI and PID methods (Díaz et al., 2001).

Beyond conventional approaches, novel improvements to PID systems have been proposed. Taler et al. (2021) developed a digital PID controller utilizing inverse problem solutions for thermometers, resulting in faster and more accurate temperature regulation in thermal storage units. Similarly, studies on spark plasma sintering highlighted the importance of accounting for heating lag and selecting optimal temperature monitoring points to ensure PID stability (Manière et al., 2017).

In conclusion, while traditional PID controllers remain effective for temperature compensation, advanced approaches such as fuzzy logic, ANN integration, and model predictive control offer meaningful advantages in flexibility and precision. These refinements are particularly valuable in complex or highly variable systems, such as those affected by fouling or dynamic thermal behavior (Oravec et al., 2018; Yang et al., 2023).

Materials and methods

Optimizing heat exchangers typically requires striking a balance between competing objectives, such as achieving high heat transfer efficiency while at the same time reducing pressure losses and limiting thermal stress. Within the framework of temperature compensation, a Min–Max optimization strategy can be applied to minimize the peak temperature differences across the exchanger without compromising overall effectiveness.

The design of high-temperature fin-and-tube exchangers, in particular, demands careful management of flow distribution to avoid excessive thermal stresses. Research on manifold design carried out using Particle Swarm Optimization and Continuous Genetic Algorithms has demonstrated clear improvements in both thermal distribution and stress reduction (Ocłoń et al., 2020). Their improved configuration lowered tube wall temperature from 185 °C to 134 °C and reduced compressive stresses from 105 MPa to 23 MPa, illustrating the potential of advanced optimization methods in temperature compensation.

In addition to structural design, the surface characteristics of heat exchangers have also been shown to significantly influence temperature regulation. For example, a recent study on air-source heat pumps reported that superhydrophobic surfaces provided superior resistance to frost accumulation and greater defrosting efficiency when compared to conventional hydrophilic or hydrophobic coatings (He et al., 2024). This result indicates that surface modification may serve as a valuable parameter in Min–Max optimization frameworks.

In summary, applying Min–Max optimization to heat exchanger temperature compensation should integrate multiple factors, including flow distribution patterns, surface treatments, and overall system design. Considering these aspects together allows engineers to achieve more uniform temperature fields, reduce thermal stresses, and enhance overall performance. Future work may explore hybrid optimization approaches and the application of novel materials to further advance temperature compensation in heat exchangers.ng various optimization techniques and exploring novel materials to further enhance temperature compensation in heat exchangers.

Temperature compensators within heat exchangers are vital components in industrial operations, ensuring efficient heat transfer. However, their development is accompanied by numerous challenges, such as expansion and contraction due to temperature fluctuations, vibration and noise problems, potential leakage, compatibility with working fluids, integration with existing systems, high costs and maintenance requirements, exposure to dynamic loads, and the risk of thermal fatigue.

To overcome these issues, several critical aspects must be addressed. These include careful material selection, the use of expansion joints, strategies for controlling vibration and noise, measures to prevent leakage, ensuring fluid compatibility, and managing space limitations. Additionally, designs must incorporate provisions for cost-efficient maintenance, resilience against dynamic stresses, and long-term resistance to thermal fatigue [4-9].

When engineering these components, it is essential to choose materials capable of withstanding temperature variations while preserving structural strength, implement reliable leak-proof seals, and protect against fouling and corrosion. Equally important is verifying compatibility with process fluids. Finally, to ensure consistent system reliability, regular inspections and preventive maintenance are indispensable.

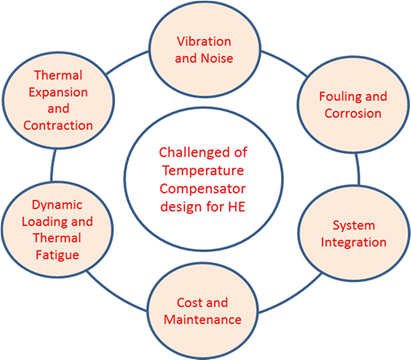

Figure 1. Challenges of TC for HE designs

Figure 1 illustrates the principal design challenges associated with temperature compensators in heat exchangers (HEs). Six major issues are highlighted: thermal expansion and contraction, dynamic stresses and thermal fatigue, vibration and noise, fouling and corrosion, integration into existing systems, and cost with maintenance requirements. Addressing these challenges demands careful consideration of thermal, mechanical, chemical, and economic aspects to achieve a durable and dependable design.

The design process can be significantly enhanced through the application of advanced simulation tools and computational fluid dynamics (CFD), which allow engineers to predict performance outcomes and identify potential issues prior to constructing physical prototypes. In addition, integrating smart sensors and real-time monitoring systems provides valuable data on temperature fluctuations, fluid flow rates, and component wear. Such insights enable proactive maintenance and contribute to improved operational efficiency.

Looking ahead, the adoption of innovative materials and modern manufacturing technologies, such as 3D printing of complex geometries, opens new possibilities for creating more efficient, durable, and reliable temperature compensators for heat exchangers [10-12].

Results and discussion

Temperature compensation systems in heat exchangers are specifically designed to minimize the impact of thermal fluctuations on overall exchanger efficiency. These systems generally consist of temperature sensors, control units, and regulating devices such as valves or pumps. By monitoring inlet and outlet fluid temperatures, the sensors detect variations and adjust flow rates accordingly. This arrangement boosts operational efficiency, lowers energy consumption, improves process control, and extends equipment life by mitigating thermal stress.

Such systems are widely applied across industries, including power generation, chemical processing, HVAC, and advanced cooling technologies. Their adoption has led to substantial improvements in heat exchanger performance and process optimization. In particular, they enhance heat transfer effectiveness by dynamically modifying fluid flow rates in response to temperature changes.

The ability of these systems to provide precise control not only elevates industrial productivity but also delivers major economic savings and reduces environmental impacts. By ensuring optimal heat transfer under varying thermal conditions, this advanced technology significantly improves energy efficiency while lowering operating costs.

Achieving optimal exchanger performance, however, requires balancing multiple objectives: maximizing heat transfer, while at the same time minimizing pressure drop and thermal stresses. Within this context, a Min–Max optimization strategy is often employed. This approach seeks to reduce the maximum temperature gradient across the exchanger without undermining its overall effectiveness.

For example, Ocłoń et al. (2020) demonstrated the effectiveness of manifold optimization using Particle Swarm Optimization and Continuous Genetic Algorithms in high-temperature fin-and-tube exchangers. Their improved design successfully decreased tube wall temperatures from 185 °C to 134 °C and reduced compressive stresses from 105 MPa to 23 MPa, confirming the value of such methods in temperature compensation.

Another critical factor is the surface properties of heat exchangers. Recent findings show that superhydrophobic coatings provide superior resistance to frost buildup and more efficient defrosting compared to both hydrophilic and standard hydrophobic surfaces (He et al., 2024). This indicates that surface modification may represent an additional parameter within Min–Max optimization frameworks.

In conclusion, effective Min–Max optimization for temperature compensation must integrate several key elements, including flow distribution, surface characteristics, and overall system design. Addressing these aspects collectively enables more uniform thermal distribution, reduced mechanical stresses, and higher overall system performance.

Conclusion

This study reviews different strategies and design considerations for optimizing heat exchanger transfer functions to achieve effective temperature compensation. Among these, Artificial Neural Networks (ANNs) have shown considerable potential in modeling and regulating exchanger dynamics, often outperforming traditional PI and PID controllers within specific operating ranges. For phase-change material (PCM)-based exchangers, embedding PCM into a graphite framework has been demonstrated to substantially boost heat transfer performance. Likewise, topology optimization methods have been applied to enhance both thermal efficiency and fluid flow in exchangers used for lithium-ion battery applications.

The paper also identifies the principal challenges in designing temperature compensators for heat exchangers. These include thermal expansion and contraction, dynamic stresses and fatigue, vibration and noise, fouling and corrosion, system integration issues, and the costs associated with maintenance. Addressing these concerns requires a careful balance of thermal, mechanical, chemical, and economic considerations.

Furthermore, the application of advanced simulation tools, computational fluid dynamics (CFD), and smart sensor technologies for real-time monitoring offers significant opportunities to refine design processes, anticipate performance issues before physical prototypes are built, and enhance long-term system reliability. Collectively, these advancements point toward more efficient, robust, and cost-effective solutions for temperature compensation in heat exchangers, with broad implications for industries such as energy, chemical processing, and HVAC.

References:

1. Congalidis, J. P., Richards, J. R., & Kiparissides, C. (1989). Modeling and control of a batch solution copolymerization reactor. AIChE Journal, 35(6), 891–902. https://doi.org/10.1002/aic.690350604
2. Carloff, R., Merten, C., & Scholl, S. (1994). Temperature oscillation calorimetry for heat transfer measurement in chemical reactors. Chemical Engineering Science, 49(24), 4153–4161. https://doi.org/10.1016/0009-2509(94)E0069-Y
3. Díaz, I., Sen, M., Yang, K. T., & McClain, R. (2001). Dynamic prediction and control of heat exchangers using neural networks. International Journal of Heat and Mass Transfer, 44(9), 1671–1679. https://doi.org/10.1016/S0017-9310(00)00193-3
4. Medrano, M., Gil, A., Martorell, I., Potau, X., & Cabeza, L. F. (2009). State of the art on high-temperature thermal energy storage for power generation. Part 2—Case studies. Renewable and Sustainable Energy Reviews, 14(1), 56–72. https://doi.org/10.1016/j.rser.2009.07.036
5. Wei, Y., Wang, J., Zhang, L., & Xu, Y. (2024). Multi-objective topology optimization of heat exchangers for improved thermal and flow performance. Applied Thermal Engineering, 235, 121456. https://doi.org/10.1016/j.applthermaleng.2024.121456
6. Jin, X., Yang, J., & Sun, L. (2021). Fuzzy self-tuning PID control for shell-and-tube heat exchangers. Energy Reports, 7, 3540–3549. https://doi.org/10.1016/j.egyr.2021.06.024
7. Taler, D., Ocłoń, P., & Cebula, A. (2021). Digital PID control using inverse problem methods for improved thermal management. Energy, 223, 120044. https://doi.org/10.1016/j.energy.2021.120044
8. Manière, C., Estournès, C., & Chevallier, G. (2017). Stability of PID controllers in spark plasma sintering processes. Journal of Materials Processing Technology, 243, 65–74. https://doi.org/10.1016/j.jmatprotec.2016.12.010
9. Ocłoń, P., Taler, D., & Cebula, A. (2020). Manifold design optimization of fin-and-tube heat exchangers using particle swarm and genetic algorithms. International Journal of Thermal Sciences, 151, 106249. https://doi.org/10.1016/j.ijthermalsci.2020.106249
10. He, Y., Zhao, X., & Li, Q. (2024). Effect of surface wettability on frosting and defrosting performance of air-source heat pumps. Energy Conversion and Management, 297, 117492. https://doi.org/10.1016/j.enconman.2024.117492
11. Oravec, J., Géczy, A., & Mészáros, A. (2018). Model predictive control of heat exchangers under fouling conditions. Applied Thermal Engineering, 130, 1204–1213. https://doi.org/10.1016/j.applthermaleng.2017.11.108
12. Yang, Z., Liu, J., & Zhang, Y. (2023). Adaptive temperature control strategies for heat exchangers with variable thermal dynamics. Energy, 263, 126083. https://doi.org/10.1016/j.energy.2022.126083
